Welcome to our review guide on GE MRI machine models! General Electric (GE) Healthcare has been a leading innovator in medical imaging technology for decades, and their MRI scan machines are no exception.
In this article, we delve into the world of GE MRI, exploring the features, imaging capabilities, and applications of every GE MRI scanner model.
The information provided below is a great resource for healthcare professionals who are looking to upgrade their imaging equipment or for anyone interested in learning more about GE MRI model types. It offers valuable insights into the unique features that set each MRI model apart.

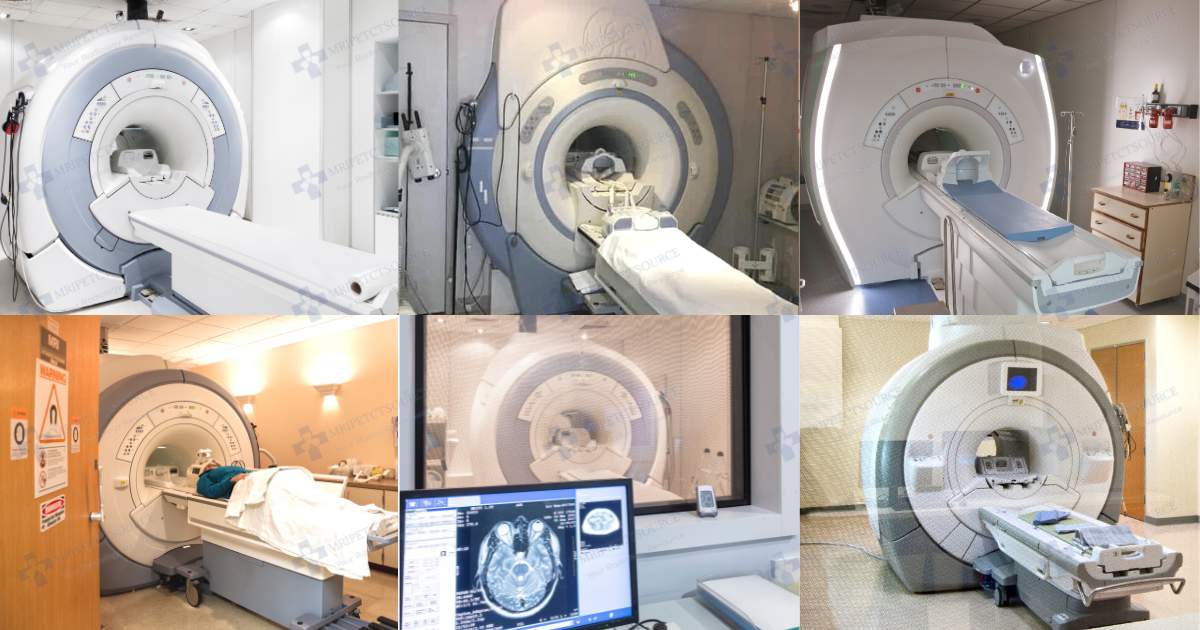

What Are The Different GE MRI Scanner Models?
GE 1.5T MRI Machine Models List
In this section, we examine the different GE 1.5T MRI machine models, their specifications, and key features. The information provided enables you to make an informed decision when selecting the best MRI scanner for your imaging needs.

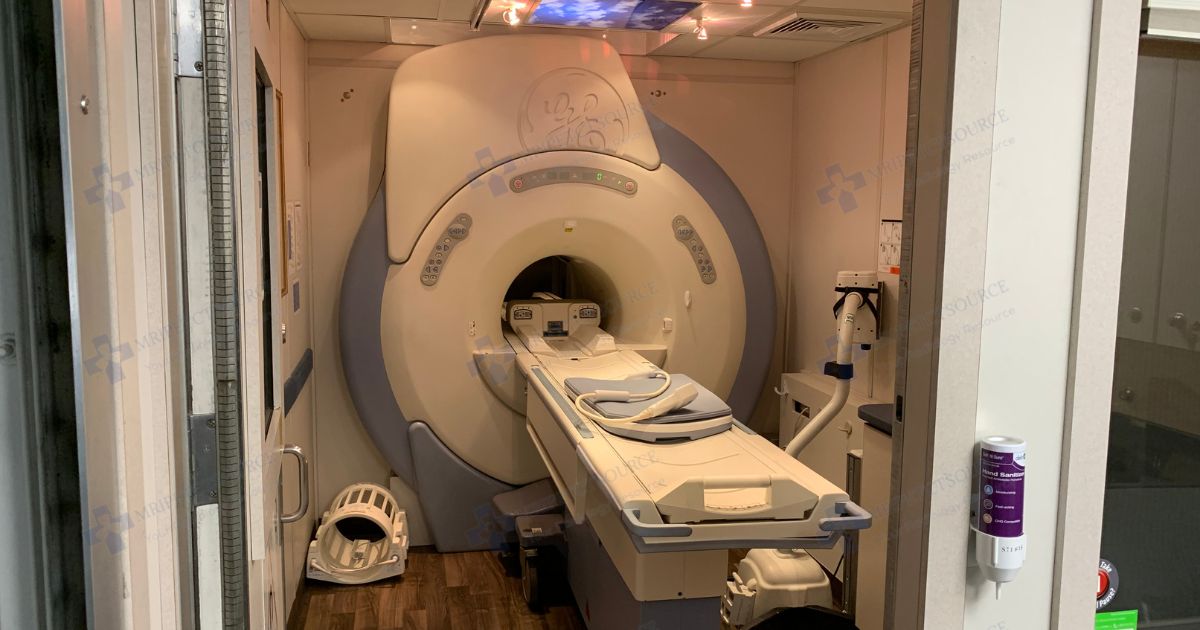

1. GE Signa LX 1.5T MRI
GE introduced the GE Signa LX 1.5T MRI in 1997. This system offers multicoil imaging with up to 4 receiver channels in a compact design. The operator console features a Silicon Graphics Octane computer presented on a high definition 19” LCD monitor. The newly designed operator workspace gives the MRI technologist full control of scan interface options to allow for seamless scanning. The MRI equipment room is outfitted with an analog RF Amplifier, SGA Gradient Assembly and a Compact PDU assembly.
The GE 1.5T Signa 9x MRI system remains popular due to its image quality, versatility and ease of use. It is widely available and cost-effective to install and operate. The MRI coil selection for specialized applications further enhance imaging capabilities.
With over 25 years of clinical use, the GE Signa LX 1.5T MRI scanner is a a proven diagnostic imaging platform. This GE MRI scanner model provides reliable diagnostic imaging with a lower cost to entry.
Click here to see GE Signa LX 1.5T MRI technical specifications, design features and additional resources.

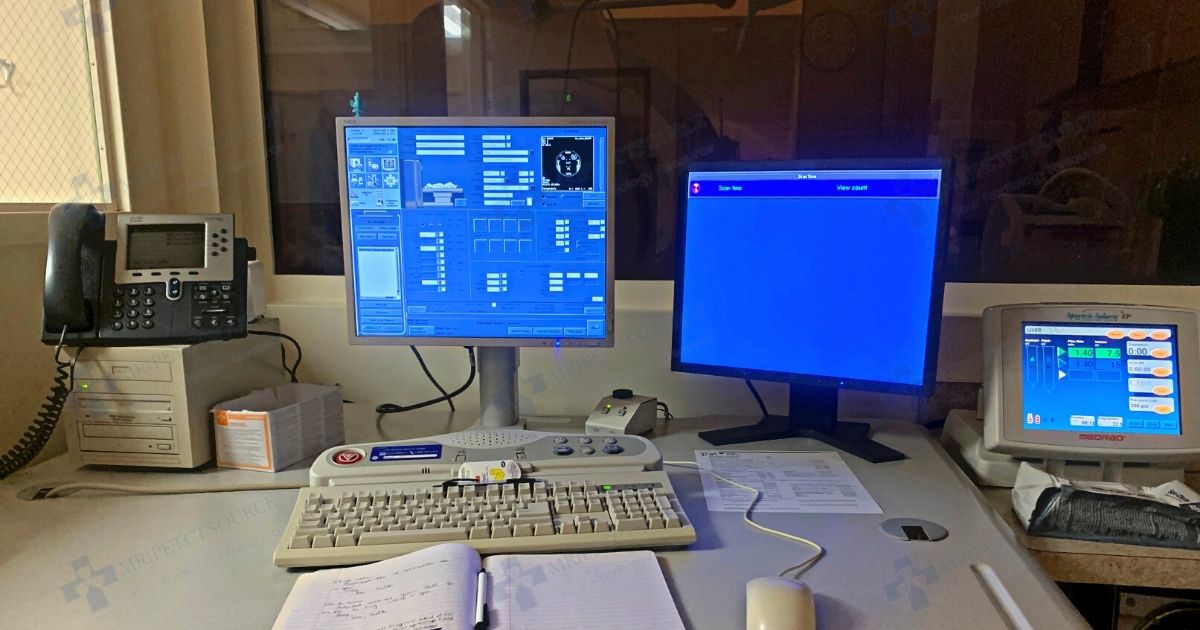

2. GE Signa Excite 1.5T MRI
The GE Signa Excite 1.5T MRI system features up to 8-channel multicoil scanning capabilities and a host of imaging upgrades.
Key Features
This MRI scanner features a 60cm patient opening and a full 48cm field-of-view, reducing the need for rescanning or redundant exams due to patient or organ motion.
The GE Signa Excite 1.5T features GE EXCITE technology. This innovative feature boosts speed and resolution beyond the limits of conventional MRI scanners, while providing high levels of magnetic field homogeneity and stability.
The GE Signa Excite 1.5T MRI features open RF architecture with the industry’s largest selection of multi-channel coils optimized for parallel imaging, as well as an advanced workstation for unsurpassed clinical productivity.
The docking table and dual-sided controls promote efficiency and patient safety. This system enables true parallel processing and ultra-fast reconstruction for a high productivity workflow.
Compared to Other GE MRI Scanner Models
The GE Signa Excite 1.5T MRI scanner is well known for its high resolution brain imaging, neck, and spine imaging, all at a competitive price. With its advanced capabilities and features, the GE Signa Excite 1.5T MRI machine is a reliable choice for medical facilities seeking a MRI scanner for their advanced imaging needs.
Click here to see GE Signa Excite 1.5T MRI technical specifications, resource links and product profile.

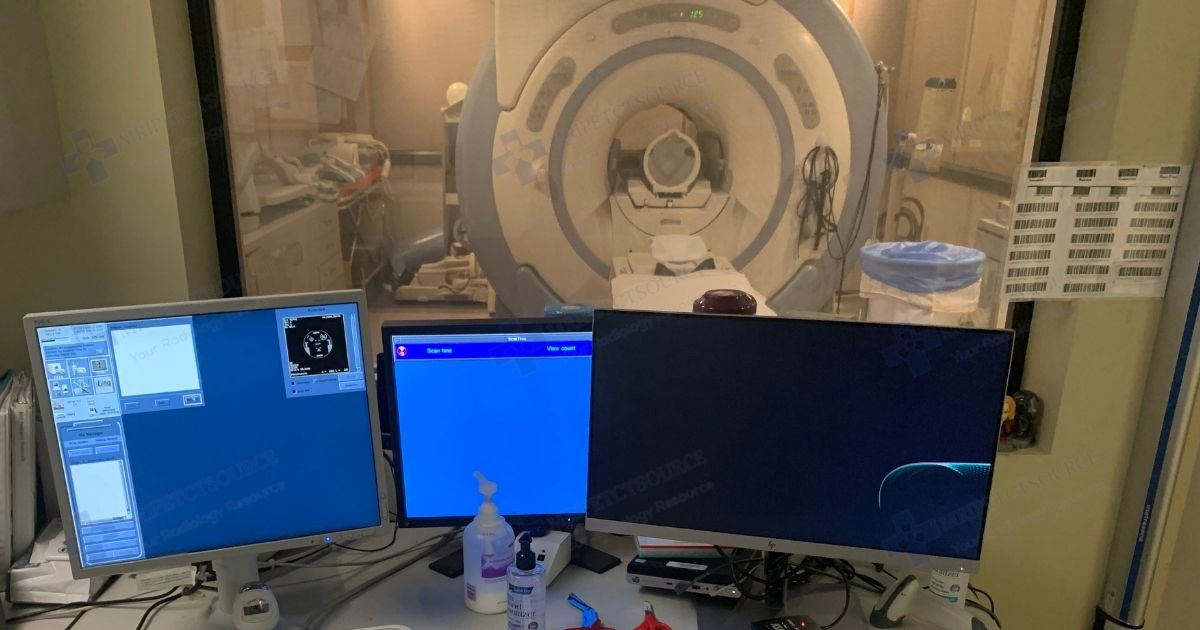

3. GE Signa Excite HD 1.5T MRI
The system offers high data throughput to simultaneously manage large volumes of data and complex image reconstruction needs, all while delivering faster software and higher image quality.
It enhances diagnostic capabilities for routine scans, stroke evaluation, breast imaging, and peripheral vascular imaging. Furthermore, it provides a dependable and accurate solution readily available on the secondary market, making it affordable to purchase, repair, and upgrade.
GE Signa Excite HD 1.5T MRI Technical Specifications
- Magnet Strength: 1.5 Tesla
- Receiver Channels: 8
- Magnet Type: LCC, CX4k,
- Gradient Slew Rate: 33/120
- Host Computer: HP xw8200, HP xw8000
- Operating Software: 12x
- Bore Width: 60cm
- Table Weight Limit: 350 lbs.
Key Features
This MR system has a 60 cm bore width and a 172 cm bore length, allowing for feet-first and head-out exams. It also includes adjustable in-bore lighting and ventilation and an intercom system for patient-operator communication. Its field of view (FOV) is 45 cm, and it has 8 RF channels, enabling high-quality images.
Furthermore, its affordability and ease of repair make it an excellent choice for small and medium-sized healthcare facilities. This system is perfect for hospitals, imaging centers, and clinics that need to handle routine scans, stroke evaluation, breast imaging, and peripheral vascular imaging.
Compared to Other GE MRI Scanner Models
The GE Signa Excite HD 1.5T MRI scanner is an ideal choice for clinical practitioners who are looking for an accurate, dependable, and affordable MR system that offers high-quality imaging, a smooth workflow, and efficient data management. Click here to
4. GE Signa Excite HDx 1.5T MRI
General Electric (GE) has upgraded its Signa HD MRI scanner to the Signa HDx 1.5 Tesla MRI scanner, which represents a significant improvement over its predecessor. This state-of-the-art MRI scanner boasts faster scan times, a higher channel count, fast reconstruction, improved image quality, and the ability to image even the most challenging patients.
GE Signa Excite HDx 1.5T MRI Technical Specifications
- Magnet Strength: 1.5 Tesla
- Receiver Channels: Up to 16
- Scan FOV: 48 cm
- Bore Width: 60cm
- Magnet Type: LCC CX4k
- Operating Software: 15x
- Host Computer: HP 9300
- Table Weight Limit: 500lbs
- PDU: ACGD PDU
- Gradient Type: HFD (High Fidelity Gradients)
- Gradient Slew Rate: 33/120
- RF Amplifier: Erbtec Digital
Key Features
One of the key features of the Signa HDx is its ability to increase patient workflow. The scanner achieves this by automatically identifying the appropriate coil for each protocol and automatically extracting the necessary scan parameters from the image.
In addition to its advanced imaging capabilities, the Signa HDx also incorporates GE’s XVRE™ volume-reconstruction engine, which allows for the generation of images almost in real-time with micro-fine detail.
GE’s GEM hybrid acceleration technique uses variable sampling to provide the fastest image acceleration possible.
TRICKS-XV technology produces entire 3D volumes reconstruction in as little as 2.5 seconds.
The Signa HDx also includes several features that enhance patient comfort and safety. For instance, it has a detachable patient table that can accommodate patients weighing up to 500 lbs.
Autovoice breathing commands preprogrammed in a variety of languages.
Additionally, the scanner features acoustic management technology, which helps to reduce the in-bore noise that can be uncomfortable for patients.
The Signa HDx MRI scanner include a short bore compact configuration.
Equipped with respiratory gating and ECG synchronization.
Variable imaging modes such as single-slice 2D, cine, multi-slab, 3D volume images, and multi-slice.
Energy efficient superconducting magnet and a closed-loop water cooling system that requires less than 0.13 L/hr liquid He.
Compared to Other GE MRI Scanner Models
The GE Signa Excite HDx 1.5T MRI meets the needs of healthcare facilities requiring high-quality diagnostic images. Medical institutions performing a high volume of MRI scans on patients with complex medical conditions, including hospitals, medical centers, and specialized clinics, would benefit from its high-resolution imaging capabilities. Additionally, research institutions and universities conducting advanced medical research and clinical trials would benefit from the scanner’s advanced imaging features.
5. GE Signa Excite HDxt 1.5T MRI
The GE Signa HDxt 1.5T MRI system is a highly reliable and industry-proven 16-channel system designed to provide clinicians with exceptional accuracy, productivity, and reliability for definitive diagnoses. This full-featured MRI system is designed to deliver definitive diagnoses, even in the most challenging exam situations.
It features a homogenous 1.5T magnet with a full 48 cm field of view, ensuring the highest homogeneity and stability. This system includes advanced technology such as up to 16-channel RF, HD coils, data acceleration, and specialized applications for various anatomical areas. The HFD Gradients produce precise waveforms, and virtual reconstruction allows for real-time, high-performance image generation.
GE Signa Excite HDxt 1.5T MRI Technical Specifications
- Magnet Strength: 1.5 Tesla
- Receiver Channels: 8, 16
- Scan FOV: 48 cm
- Magnet Type: LCC
- Gradient Slew Rate: 77/120
- Host Computer: HP xw8400, HP Z410
- Bore Width: 60cm
- Table Weight Limit: 500lbs
With a 16-channel configuration, users can instantly access GE’s leading-edge capabilities. This includes GE’s compact high homogeneity 1.5T magnet, powerful high-fidelity gradients, high-performance computing platform, and exclusive HDxt technology.
Overall, the GE Signa HDxt 1.5T MRI system represents a significant advancement in 1.5T imaging, meeting the demands of modern clinical imaging with its advanced technologies and capabilities.
Additional information available on the GE Signa Excite HDxt 1.5T MRI page
Get Your Quote Today!
Our imaging experts take the stress out of the lease and sales process. Simply provide your contact information to have our team contact you.
BY SUBMITTING YOUR INFORMATION, YOU’RE GIVING US PERMISSION TO CONTACT YOU BY EMAIL OR PHONE. YOU MAY UNSUBSCRIBE AT ANY TIME.
6. GE Optima 450w 1.5T MRI
Introduced in 2010, the GE Optima MR450w 1.5T MRI prioritizes technologist workflow and patient experience. It features a 70cm patient bore with bright inner bore lighting and a flared gantry for a comfortable, open experience. The high-resolution In-Room Operator Control (IROC) allows for fast exam set-up, while the sleek dual-sided controls simplify patient set-up. IntelliTouch Patient Positioning boosts exam productivity, and LED accent lights enhance the overall aesthetic appeal.
GE Optima 450w 1.5T MRI Technical Specifications
- Magnet Strength: 1.5 Tesla
- Receiver Channels: Up to 32
- Scan FOV: 50 cm
- Magnet Type: LCC
- Gradient Slew Rate: 77/120
- Host Computer: HP xw8400, HP Z410
- Operating Software: 25x
- Bore Width: 70cm
- Table Weight Limit: 500lbs
- PDU: ACGD PDU
- Gradient Type: HFD (High Fidelity Gradients)
- RF Amplifier: Erbtec Digital
Key Features
The system includes insightful technology such as a highly homogeneous magnet, digital RF (OpTix), and Acoustic Reduction Technology (ART).
Non-contrast imaging is possible thanks to innovative applications like Inhance DeltaFlow and 3D PC Inhance. Exceptional breast imaging is achievable with IDEAL and VIBRANT Flex.
Two-station whole-spine imaging, 3D Arterial Spin Labeling (3D ASL), and radiation therapy planning functionality further expand the system’s capabilities.
Compared To Other GE MRI Scanner Models
The Optima MR450w 1.5T MRI is an excellent choice for healthcare providers looking to invest in proven state-of-the-art imaging technology. Innovative design and insightful technology, combined with its proven track record and maximum uptime, make it a great imaging option. This system offers healthcare facilities the flexibility they need to meet the demands of their patients.
Investing in the Optima MR450w is a sound decision, as this design offers a proven 25-year track record. The system also goes beyond radiology and supports radiation therapy planning functionality. This makes it an all-in-one solution for healthcare facilities looking to expand their services.
7. GE Optima MR360 Advance 1.5T MRI
Introduced in 2013, the GE Optima MR360 is a mid-field MRI scanner that is designed for general imaging applications. It offers high-resolution imaging and advanced imaging technologies. Parallel imaging and time-of-flight imaging, make it a versatile option for a variety of imaging applications. The Optima MR360 also features a compact design, making it well-suited for use in smaller facilities or as a mobile MRI solution.
The 60cm bore size provides ample space for most imaging applications and allows for comfortable patient positioning. GE Optima MR360 is designed for a wide range of imaging applications, including musculoskeletal, neurological, and abdominal imaging.
8. GE Optima 750w 1.5T MRI
The GE Optima 750w 1.5T MRI scanner is a state-of-the-art imaging system that offers advanced features, making it a compelling investment for healthcare organizations prioritizing superior patient care.
Key Features
This sophisticated scanner features high-definition gradients, a powerful RF chain, and a robust digital platform that enable faster and more precise diagnoses. In addition, the scanner’s motion correction and MRI noise reduction capabilities augment patient comfort and minimize the need for repeat scans. Compared to its predecessors, this scanner boasts a wider bore, a quieter scanning environment, and a more intuitive user interface that improves workflow efficiency for healthcare providers.
Compared to Other GE MRI Scanner Models
The GE Optima 750w 1.5T MRI scanner is an ideal investment for healthcare organizations striving to deliver the highest standards of imaging quality, patient comfort, and workflow efficiency.
9. GE Signa Creator 1.5T MRI
Introduced in 2015, the GE Signa Creator 1.5T MRI is designed with image quality in mind. This system employs quiet technology that is appreciated by both patients and staff. Additionally, the implementation of Optix technology enhances signal-to-noise ratio, further improving the image quality. Notably, due to the use of the CXK4 magnet, the system can be upgraded with minimal downtime and substantially less cost.
This system is outfitted with a 60 cm bore and utilizes the CXK4 magnet design, which has demonstrated impressive stability and performance for over two decades.
GE Signa Creator 1.5T MRI Technical Specifications
- Magnet Strength: 1.5 Tesla
- Operating Frequency: 63.8 MHz
- Receiver Channels: 32
- Scan FOV: 48 cm
- Magnet Type: LCC (Zero-Boil Off)
- Gradient Slew Rate: 33/120
- Operating Software: 25x
- Bore Width: 60cm
- Table Weight Limit: 500lbs
- PDU: ACGD PDU
- Gradient Type: SGA/ACGD
- RF Amplifier: Erbtec Digital
Key Features
The GE Signa Creator 1.5T MRI is outfitted with OpTix RF technology with Express Coils provides up to 27% more SNR. A 1.5T low cryogen consumption magnet ensures high homogeneity while providing Zero-boil off technology.
The system boasts extensive clinical capabilities with motion correction using PROPELLER, imaging around metal with IDEAL and MAVRIC SL, and diffusion imaging with eDWI.
34% less energy consumption than previous generation MRI, a smaller footprint, and ease of use features to help keep cost of ownership low.
The fixed table configuration with Express coil technology enables easy positioning and high throughput, while the detachable table improves patient access and productivity.
Join the Medical Imaging Source Community!
Subscribe To Our Newsletter To Stay Up To Date With The Latest News, Exclusive Offers, And Giveaways!
10. GE Signa Explorer 1.5T MRI
The GE Signa Explorer is a high-field MRI scanner that is designed for general imaging applications. It offers a large patient bore and a high-resolution imaging capability, making it well-suited for a variety of examinations, including brain, spine, body, and musculoskeletal scans. The Signa Explorer also features advanced imaging technologies, such as parallel imaging, which allows for faster scan times and higher image quality.
11. GE Signa Voyager 1.5T MRI
The SIGNA Voyager 1.5T MRI scanner combines the latest diagnostic imaging technology with a compact 1.5T wide bore magnet. First introduced in 2016, this system focuses on producing optimal image quality while allowing technologists and radiologists to conduct patient-friendly exams quickly. This intelligent scanner is a perfect balance between comfort and productivity.
GE Signa Voyager 1.5T MRI Technical Specifications
- Magnet Strength: 1.5 Tesla
- Operating Frequency: 63.8 MHz
- Receiver Channels: Up to 65
- Scan FOV: 50 cm
- Operating Software: 29x
- Magnet Type: LCC (Zero-Boil Off)
- Gradient Slew Rate: 33/120
- Bore Width: 60cm
- Table Weight Limit: 500lbs
- PDU: ACGD PDU
- Gradient Type: SGA/ACGD
- RF Amplifier: Erbtec Digital
Key Features
Updated software version (29x) optimizes image quality and reduces exam time to enhance the patient experience. Setup scan protocols 5x faster with 4x fewer mouse clicks.
Up to 59% productivity gain in exam setup and 37% reduction in table time with Air Touch
Reduce power consumption up to 25% with ultra high efficiency gradients
Total Digital Imaging (TDI) Increases SNR by up to 25%
Adaptive Air Coils weigh up to 50% less and can accommodate all types of scans and patient sizes. Reduce the need to readjust patient in between exams.
Air Recon DL employs deep learning algorithm to improve reconstruction times by up to 50%
Overview
Introduced in 2016, the GE Signa Voyager 1.5T MRI scanner is an entry-level system designed for small- to medium-sized medical centers. It features a 70 cm bore and a 500-pound patient table weight limit. The scanner is equipped with a 16-channel system and a 33 mT/m gradient system. It has a maximum slew rate of 110 T/m/s and a maximum gradient strength of 33 mT/m. The system is equipped with advanced imaging capabilities, such as PROPELLER imaging and Cube T2 imaging.
12. GE Signa Artist 1.5T MRI
In 2016, The GE Signa Artist 1.5T MRI was launched with a primary focus on ensuring patient comfort through the incorporation of a 70cm bore magnet. This state-of-the-art device MRI boasts up to 128 RF channels and introduces Direct Digital Interface.
Key Features
DDI technology utilizes a fiberoptic cable-based analog to digital conversion that provides high speed scan data transfer. This technology delivers a significant reduction in noise and an improved signal-to-noise ratio of up to 27%. Additionally, MRI technologists are now presented with the option to either enhance the signal-to-noise ratio or increase speed.
Technologists can choose between increased speed or enhanced SNR for optimal image quality. This model is equipped with a 70cm bore magnet combined with cutting-edge DDI technology, making it the perfect MRI when patient comfort is a priority. The system is equipped with advanced imaging capabilities, such as IDEAL imaging and MAVRIC SL imaging.
The Signa Artist 1.5T MRI Scanner by GE Healthcare enables low liquid helium operation while maintaining best-in-class homogeneity. Intelligent magnet technology optimizes the scanner’s performance, ensuring excellent image quality and improved operational uptime throughout the system’s lifetime.
13. GE Signa Victor 1.5T MRI
The GE Signa Victor 1.5T MRI is a high-performance MRI scanner designed for healthcare organizations that demand the best in imaging technology. This system combines the latest imaging solutions with the latest energy-efficient technology, making it an ideal choice for healthcare organizations looking to improve patient care while reducing operating costs.
The GE Signa Victor 1.5T MRI scanner helps face daily challenges, offers breakthrough solutions like the new SIGNA One user experience, groundbreaking AIR Coils, AIR Recon DL, and green magnet. It addresses rising power costs, staff burnout, high patient volume while maintaining satisfaction.
This MRI scanner delivers exceptional image quality, enabling faster and more accurate diagnoses. Furthermore, its customizable and streamlined workflow enhances efficiency and reduces the overall scan time. This allows healthcare professionals to serve more patients in a shorter time frame.
Compared To Other GE MRI Scanner Models
The GE Signa Victor 1.5T MRI scanner is an excellent investment for healthcare organizations that prioritize superior patient care, operational efficiency, and financial sustainability. This system is best suited for large hospitals, imaging centers, and research institutions that require a high-performance MRI scanner capable of handling a high volume of patients and delivering exceptional image quality.
Investing in a GE Signa Victor 1.5T MRI scanner is a smart decision for any healthcare organization looking to enhance their diagnostic capabilities.
14. GE Artist EVO 1.5T MRI
Introducing the SIGNA Artist Evo 1.5T MRI, a cutting-edge transformation that breathes new life into legacy 1.5T MR systems. This innovative upgrade is the world’s first and only of its kind. The SIGNA Artist Evo transforms narrow-bore scanners from 60 cm to 70 cm, making scans more comfortable for patients. The SIGNA Artist Evo provides a larger field of view measuring 55x55x50cm, allowing for better visualization of the anatomy and facilitating more accurate diagnoses. It also introduces new clinical capabilities and possibilities, advancing patient care. With this upgrade, imaging centers can provide a higher level of care, ensuring that patients have a more comfortable and accurate scan.
By upgrading to Signa Artist Evo, legacy MRI systems get a makeover, equipping them with modern features for future needs. With a wider bore and a larger field of view, you can make the scan experience more comfortable for patients while improving the diagnostic capability of your system.
Key Features
The improved gradient performance and more Total Digital Imaging (TDI) RF Channels increase the quality of images, providing you with better accuracy and more detailed images for diagnoses.
Higher maximum weight limit, up to 500 lbs / 227 kg, means you can now scan broader body types, extending your service to a wider patient population.
In addition, the Deep Learning in its DNA, AIR Recon DL standard, includes future 3D & PROPELLER enhancements‡, allowing you to utilize advanced imaging techniques for improved diagnoses.
The AIR Coils are 50% lighter than conventional coil technology, providing added comfort for patients while producing more accurate results. Patients no longer need readjustment during their scans as whole-body imaging workflows allow different organs to be scanned simultaneously.
The AIR Coils: Anterior Array 30 or 16 Channels, Multi-Purpose 21 or 20 Channels, produce excellent signal-to-noise ratio and help improve image quality.
AIR Recon DL also reduces scan time by up to 50%. This cutting-edge feature helps lower patients’ stress levels, making the overall experience more comfortable and efficient.
The GE Signa Artist Evo 1.5T MRI offers a range of advanced features that improve the patient experience. Toe-to-Head Whole-Body Imaging and Feet-First Scanning capabilities greatly enhance patient satisfaction and reduce claustrophobia rejection rates by up to 90%.
The eXpres Detachable Table with a 40 Channel TDI Posterior Array allows you to prepare patients outside the imaging room. The patient table accommodates a 1.4x greater maximum weight limit than your legacy MR system, providing added convenience and accessibility.
Compared to Other GE MRI Scanner Models
GE’s SIGNA Artist Evo 1.5T MRI package revolutionizes legacy 1.5T MR systems by expanding the bore, improving image quality and increasing diagnostic capabilities. This transformation enhances patient experience and expands your services.
The GE Signa Artist EVO 1.5T MRI is best suited for hospitals and imaging centers that want to upgrade their narrow-bore MRI systems. Additionally, It’s ideal for facilities that prioritize patient comfort and demand the best in radiology technology.
Get Your Quote Today!
Our imaging experts take the stress out of the lease and sales process. Simply provide your contact information to have our team contact you.
BY SUBMITTING YOUR INFORMATION, YOU’RE GIVING US PERMISSION TO CONTACT YOU BY EMAIL OR PHONE. YOU MAY UNSUBSCRIBE AT ANY TIME.
GE 3T MRI Machine Models List
GE 3T MRI machine models are advanced and reliable diagnostic imaging systems that deliver exceptional image quality, advanced features, and flexible options to meet a wide range of clinical applications. They offer advanced imaging capabilities, user-friendly interfaces, and flexible imaging options. This section will explore specifications and key features of the GE MRI scanner models in a 3T magnet package.

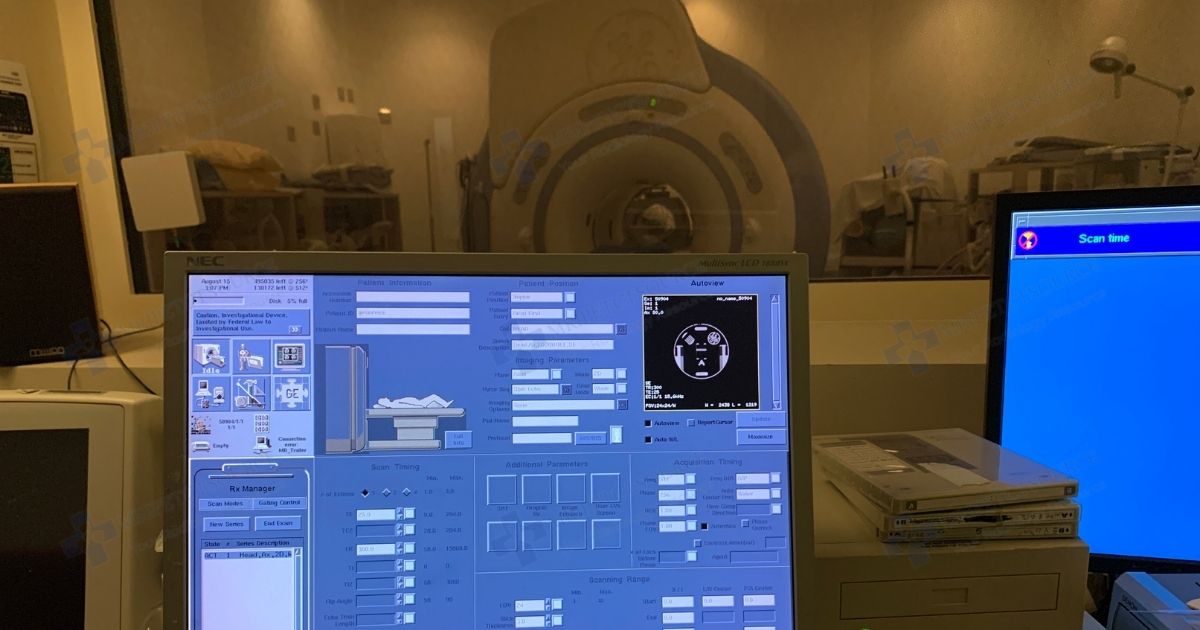

15. GE Signa Excite 3T MRI
The GE Signa Excite 3T MRI offers superior resolution and contrast compared to the 1.5T MRI version. It is ideal for performing neuroimaging, musculoskeletal imaging, and cardiovascular imaging.
Additionally, it can detect smaller lesions and abnormalities than the 1.5T version, which can lead to more accurate diagnoses.
16. GE Signa Excite HD 3T MRI
The GE Signa Excite HD 3T MRI builds upon the capabilities of the GE Signa Excite MRI platform, with improved signal-to-noise ratio and faster acquisition times. This makes it even more efficient and capable of producing higher quality images in a shorter amount of time
The system offers high data throughput to simultaneously manage large volumes of data and complex image reconstruction needs, all while delivering faster software and higher image quality.
It enhances diagnostic capabilities for routine scans, stroke evaluation, breast imaging, and peripheral vascular imaging. Furthermore, it provides a dependable and accurate solution readily available on the secondary market, making it affordable to purchase, repair, and upgrade.
GE Signa Excite HD 3T MRI Technical Specifications
- Magnet Strength: 3 Tesla
- Receiver Channels: 8
- Magnet Type: LCC, CX4k,
- Gradient Slew Rate: 33/120
- Host Computer: HP xw8200, HP xw8000
- Operating Software: 12x
- Bore Width: 60cm
- Table Weight Limit: 350 lbs.
Key Features
This MR system has a 60 cm bore width and a 172 cm bore length, allowing for feet-first and head-out exams. It also includes adjustable in-bore lighting and ventilation and an intercom system for patient-operator communication. Its field of view (FOV) is 45 cm, and it has 8 RF channels, enabling high-quality images.
Furthermore, its affordability and ease of repair make it an excellent choice for small and medium-sized healthcare facilities. This system is perfect for hospitals, imaging centers, and clinics that need to handle routine scans, stroke evaluation, breast imaging, and peripheral vascular imaging.
Compared to Other GE MRI Scanner Models
The GE Signa Excite HD 3T MRI scanner is an ideal choice for clinical practitioners who are looking for an accurate, dependable, and affordable 3T MR system that offers high-quality imaging, a smooth workflow, and efficient data management. Click here for additional information about
17. GE Signa Excite HDx 3T MRI
GE Signa Excite HDx 3T MRI combines the best of imaging technology with an even higher signal-to-noise ratio, allowing for faster and more efficient imaging. It is ideal for performing advanced studies such as diffusion tensor imaging and spectroscopy, making it an excellent choice for research facilities and advanced clinical applications.
18. GE Signa Excite HDxt 3T MRI
The GE Signa HDxt 3.0T MRI scanner is a high-end system designed for advanced imaging. It features a 70 cm bore and a 500-pound patient table weight limit. The scanner is equipped with up to 16-channel system and a 50 mT/m gradient system. It has a maximum slew rate of 200 T/m/s and a maximum gradient strength of 50 mT/m. The system is equipped with advanced imaging capabilities, such as diffusion tensor imaging and spectral imaging.
GE Signa HDxt 3T MRI Technical Specifications
- Magnetic field strength: 3 Tesla
- Gradient strength: 50 mT/m
- Slew rate: 200 T/m/s
- Channels: 8/16/32
- Field of view: 50 cm
- Maximum gradient amplitude: 50 mT/m
- Maximum gradient slew rate: 200 T/m/s
- RF transmit channels: 8/16
- Minimum bore diameter: 60 cm
- Maximum gradient strength (amplitude): 50 mT/m
- Maximum gradient slew rate: 200 T/m/s
- RF frequency range: 123-127.8 MHz
- Patient table weight capacity: 500 lbs
The GE Signa HDxt 3T MRI scanner is a state-of-the-art medical imaging device designed to deliver exceptional image quality and patient comfort. With a 3 Tesla magnetic field, advanced gradient technology, and a large number of RF channels, this scanner can produce high-quality images of the brain, spine, and joints, as well as other areas of the body. The scanner is available with 8 to 16 channels, providing flexibility to suit a variety of imaging needs.
With a minimum bore diameter of 60 cm and a patient table weight capacity of 500 lbs, the GE Signa HDxt 3T MRI scanner can comfortably accommodate a wide range of patients. With its advanced capabilities and user-friendly design, the GE Signa HDxt 3T MRI scanner is an excellent choice for medical professionals looking to deliver the highest level of care to their patients.
19. GE Signa Voyager 3T MRI
The GE Voyager 3T MRI scanner is a cutting-edge medical imaging device designed to deliver exceptional image quality and patient comfort. With a 3 Tesla magnetic field, advanced gradient technology, and a large number of RF channels, this scanner can produce high-quality images of the brain, spine, and joints, as well as other areas of the body.
GE Voyager 3T MRI Scanner Technical Specifications
- Magnetic field strength: 3 Tesla
- Operating Frequency: 128 MHz
- Channels: 32/48
- Field of view: 50 cm
- Gradient strength: 50 mT/m
- Slew rate: 200 T/m/s
- Maximum gradient amplitude: 50 mT/m
- Maximum gradient slew rate: 200 T/m/s
- Minimum bore diameter: 70 cm
- Maximum gradient strength (amplitude): 50 mT/m
- Maximum gradient slew rate: 200 T/m/s
- Patient Table Weight Capacity: 500 lbs
Bore diameter of 70 cm and a patient table weight capacity of 500 lbs, the GE Voyager 3T MRI scanner can comfortably accommodate a wide range of patients.
Furthermore, this scanner is available with 32 or 48 channels and 8 or 16 RF transmit channels, providing flexibility to suit a variety of imaging needs.
With its advanced capabilities and user-friendly design, the GE Voyager 3T MRI scanner is an excellent choice for medical professionals looking to deliver the highest level of care to their patients.
20. GE Discovery MR750w 3T MRI
The GE Discovery MR750w 3.0T MRI scanner is a high-end system designed for advanced imaging. It features a 70 cm bore and a 500-pound patient table weight limit. The scanner is equipped with a 32-channel system and a 50 mT/m gradient system. It has a maximum slew rate of 200 T/m/s and a maximum gradient strength of 50 mT/m. The system is equipped with advanced imaging capabilities, such as MR-guided therapy and MR elastography.
The GE Discovery MR750w is a high-field MRI scanner that is designed for advanced clinical applications, including neuro, cardiovascular, and musculoskeletal imaging. It features a wide bore design, high-resolution imaging capabilities, and advanced imaging technologies, such as parallel imaging, time-of-flight imaging, and steady-state free precession imaging. The Discovery MR750w also offers an open design that provides a more relaxed and comfortable experience for patients.
21. GE Signa Pioneer 3T MRI
The GE Signa Pioneer 3T MRI is a compact and portable MRI scanner that is designed for use in smaller facilities or in a mobile MRI unit. Despite its compact size, the Signa Pioneer still offers high-resolution imaging and advanced imaging technologies, making it a versatile option for a variety of imaging applications.
The GE Signa Pioneer 3.0T MRI scanner is a high-end system designed for advanced imaging. It features a 70 cm bore and a 500-pound patient table weight limit. The scanner is equipped with a 48-channel system and a 60 mT/m gradient system. It has a maximum slew rate of 200 T/m/s and a maximum gradient strength of 60 mT/m. The system is equipped with advanced imaging capabilities, such as multi-band imaging and hyperband spectral imaging.
The GE Signa Pioneer is a compact and portable MRI scanner that is designed for use in smaller facilities or as a mobile MRI. The Signa Pioneer’s compact size does not compromise its ability to offer high-resolution imaging and advanced imaging technologies, making it a versatile option for a variety of imaging applications.
22. GE Signa Hero 3T MRI
The SIGNA Hero scanner is a state-of-the-art MRI designed to provide exceptional image quality, enhanced workflow, and increased productivity, all while prioritizing patient comfort. It features a 70 cm bore and a 3.0T magnet, making it an all-in-one solution for healthcare facilities looking to optimize their radiology services.
This MR hero streamlines difficult exams, making them routine and helping radiology heroes run their daily practice smoother. With a wide-bore design, patients can experience a more open and comfortable scanning experience. Without a doubt, clinicians will benefit from easier access to the patient and greater flexibility in patient positioning.
Key Features
The dual 12.1″ in-room display with capacitive touch allows for real-time viewing and manipulation of images, making exam set-up faster and more efficient. The deep learning capabilities of the AIR Recon DL technology provide improved image quality, allowing for confident diagnoses and more precise treatment planning.
In addition, the SIGNA Hero boasts a next-generation, low helium, lighter magnet, which not only makes it more eco-friendly, but also reduces the burden on facilities in terms of helium refilling and maintenance. Its 50 cm field of view allows for coverage of more anatomy in fewer scans, making it a more efficient and cost-effective option.
GE Hero 3T MRI Scanner Technical Specifications
- Magnetic field strength: 3 Tesla
- Gradient strength: 50 mT/m
- Slew rate: 200 T/m/s
- Channels: 48
- Field of view: 50 cm
- Maximum gradient amplitude: 50 mT/m
- Maximum gradient slew rate: 200 T/m/s
- Minimum bore diameter: 60 cm
- Maximum gradient strength (amplitude): 50 mT/m
- Maximum gradient slew rate: 200 T/m/s
- RF frequency range: 123-127.8 MHz
- Patient table weight capacity: 500 lbs
Compared to Other GE MRI Scanner Models
The GE SIGNA Hero 3T MRI is an outstanding investment for healthcare providers looking to offer high-quality imaging services with a focus on patient comfort and efficient workflow. Its exceptional performance, reliable technology, and intuitive design make it an essential tool for radiology heroes looking to meet the demands of their patients and deliver the best possible care.
GE’s Hero 3T MRI scanner combines high magnetic field strength, advanced gradient technology, and a large number of RF channels to deliver high-quality diagnostic imaging. Additionally, the scanner features HD multicoil imaging with up to 48 channels and a field of view of 50 cm. This adds to the exceptional image quality and scan coverage.
23. GE Signa Architect 3T MRI
SIGNA Architect 3.0T is a state-of-the-art imaging solution that combines the advancements in MR technology with GE Healthcare’s intuitive engineering. The SIGNA Works productivity platform fuels this system, providing a harmonious design of form and function. This system is crafted to significantly energize your productivity, enhance security, improve diagnostics, and reduce operating expenses.
Key Features
With Total Digital Imaging (TDI), the SIGNA Architect offers startling advances in imaging, providing a total imaging win. GE’s Direct Digital Interface (DDI) employs an independent analog-to-digital converter to digitize inputs from each of 128 RF channels, eliminating unnecessary noise enhancement. That is to say, every RF channel translates to a digitized signal to improve the SNR of images.
Additionally, eMode technology replaces analog blocking circuits with intelligent ultra-fast switches, expanding zero TE imaging capabilities even further.
The GE Signa Architect offers phenomenal homogeneity, higher gradient specifications, and 3D GradWarp distortion correction. With these features, you can properly image off-center anatomy like shoulders and hips with the full 50 x 50 x 50 cm FOV in a 70 cm wide bore.
In addition to accommodating larger patients, this system provides excellent spatial integrity, allowing no body part to be left behind.
SIGNA Works applications portfolio covers a wide variety of imaging solutions, including NeuroWorks, OrthoWorks, BodyWorks, OncoWorks, CVWorks, and PaedWorks. With SIGNAWorks, you have all the tools you need to complete a fast and high-quality clinical exam, including 2D, 3D, and motion correction capabilities.
24. GE Signa Premier 3T MRI
GE Signa Premier 3T MRI is designed to provide clinical practitioners with high-performance MR image quality. Using innovative gradient coil technology called SuperG, this magnet maintains the thermal stability of a high-performance gradient in a wide bore package. SuperG allows the GE SIGNA Premier to maximize the duty cycle to provide high-resolution imaging. All of these features come without sacrificing patient comfort or bore size.
Key Features
By combining a true 70 cm bore with 60 cm performance, GE Signa Premier is the only MR system that can offer such high-quality imaging in a wider bore. The system’s all-hollow conductor design with independent cooling circuits enables long duty cycles. Additionally, the system boasts an 80 mT/m amplitude and a 200 T/m/s slew rate, ensuring the accurate capture of images.
The force and torque-balanced design provides cutting-edge stability and minimal vibration, which is especially important when imaging sensitive areas of the body.
Clinical practitioners will benefit from GE Signa Premier’s multi-shell Diffusion Tensor imaging at b1000, b2000, and b3000, which allows for the precise mapping of the brain’s white matter tracts. The system also offers super-resolved ‘track density’ at 300 microns, providing highly detailed images of tissues and structures. Additionally, active, passive, and higher-order shimming features make it possible to adjust the magnetic field to improve image quality.
Compared to Other GE MRI Scanner Models
Signa Premier 3T MRI lives up to it’s name as the best of GE MRI scanner models. This system is ideal for healthcare facilities that need to capture high-quality MR images for various clinical applications. Its advanced features and capabilities make it an excellent investment for hospitals, imaging centers, and clinics. With Signa Premier, clinical practitioners can provide their patients with top-of-the-line care while optimizing their workflow and productivity.
25. GE Signa Premier Evo 3.0T MRI
The SIGNA Premier Evo upgrade package expands legacy 3.0T MR systems’ bore by 36% from 60 cm to 70 cm. This system upgrade reduces claustrophobia rejection rates by up to 90%.
The scanner is equipped with up to 146-channel system and a 80 mT/m gradient system. The system is equipped with advanced imaging capabilities, such as HyperSense imaging and Total Digital Imaging.
GE Signa Premier Evo 3.0T MRI Technical Specifications
- Magnet Strength: 3 Tesla
- Operating Frequency: 127.6 MHz
- Channels: Up to 146
- Scan Field of View: 50 cm
- Gradient Strength: 80 mT/m, 200 T/m/s
- Patient Weight Limit: 550 lbs
Key Features
The express detachable table accommodates up to 550 lbs/250 kg, expanding the service to a wider patient population.
AIR Coils provide comfort and accurate results, and whole-body imaging workflows allow simultaneous scanning of different organs, reducing readjustments. AIR Recon DL also reduces scan time by up to 50%, reducing patient stress levels.
GE MRI Scanner Models Overview
In conclusion, GE offers a product line of MRI scanner models designed to meet the changing needs of healthcare facilities and patients. The details mentioned above provide comparison between each GE MRI model. Our goal is to help medical professionals make an informed decision when planning for an MRI machine purchase.
When choosing an MRI scanner, it’s important to first consider your imaging needs to find the MRI model that meets or exceeds your requirements. Whether you’re looking for a high-field MRI scanner for advanced clinical applications, a mid-field MRI scanner for general imaging, or a compact and portable MRI scanner, GE has a model that is right for you.
GE MRI scanner models related resources
- Are You In The Market For New System? See our updated MRI Machine Price Guide and CT Scanner Price Guide for the latest.
- Mobile MRI Scanner Planning Guide
- The GE MRI Magnet Types article provides dimensions, weight, and technical details for room buildout.
- Prevent cybersecurity threats to your healthcare organization.
- Safeguard patient information and protect your online privacy.
- Find video resources on the MRIPETCTSOURCE YouTube Channel.
- Keep Your System Scanning Reliably With These Top 10 Preventative Measures For Imaging Centers.
Get Your Quote Today!
Our imaging experts take the stress out of the lease and sales process. Leave your contact information to have our team contact you.
BY SUBMITTING YOUR INFORMATION, YOU’RE GIVING US PERMISSION TO CONTACT YOU BY EMAIL OR PHONE. YOU MAY UNSUBSCRIBE AT ANY TIME.
Join the Medical Imaging Source Community!
Subscribe To Our Newsletter To Stay Up To Date With The Latest News, Exclusive Offers, And Giveaways!
The information provided by Medical Imaging Source (“we,” “us,” or “our”) on https://www.medicalimagingsource.com (the “Site”) is for general informational purposes only. All information on the Site is provided in good faith, however we make no representation or warranty of any kind, express or implied, regarding the accuracy, adequacy, validity, reliability, availability, or completeness of any information on the Site. UNDER NO CIRCUMSTANCE SHALL WE HAVE ANY LABILITY TO YOU FOR ANY LOSS OR DAMAGE OF ANY KIND INCURRED AS A RESULT OF THE USE OF THE SITE OR RELIANCE ON ANY INFORMATION PROVIDED ON THE SITE. YOUR USE OF THE SITE AND YOUR RELIANCE ON ANY INFORMATION ON THE SITE IS SOLELY AT YOUR OWN RISK.
