This mobile MRI planning guide details the most important features to consider when purchasing or leasing mobile MRI units for your imaging center.
Mobile MRI scanners provide reliable imaging capabilities that can be transported to meet patient demand. However, it’s essential to consider factors such as cost, imaging capabilities, power requirements and size requirements before making a purchase, lease or rental decision.
What is a Mobile MRI?

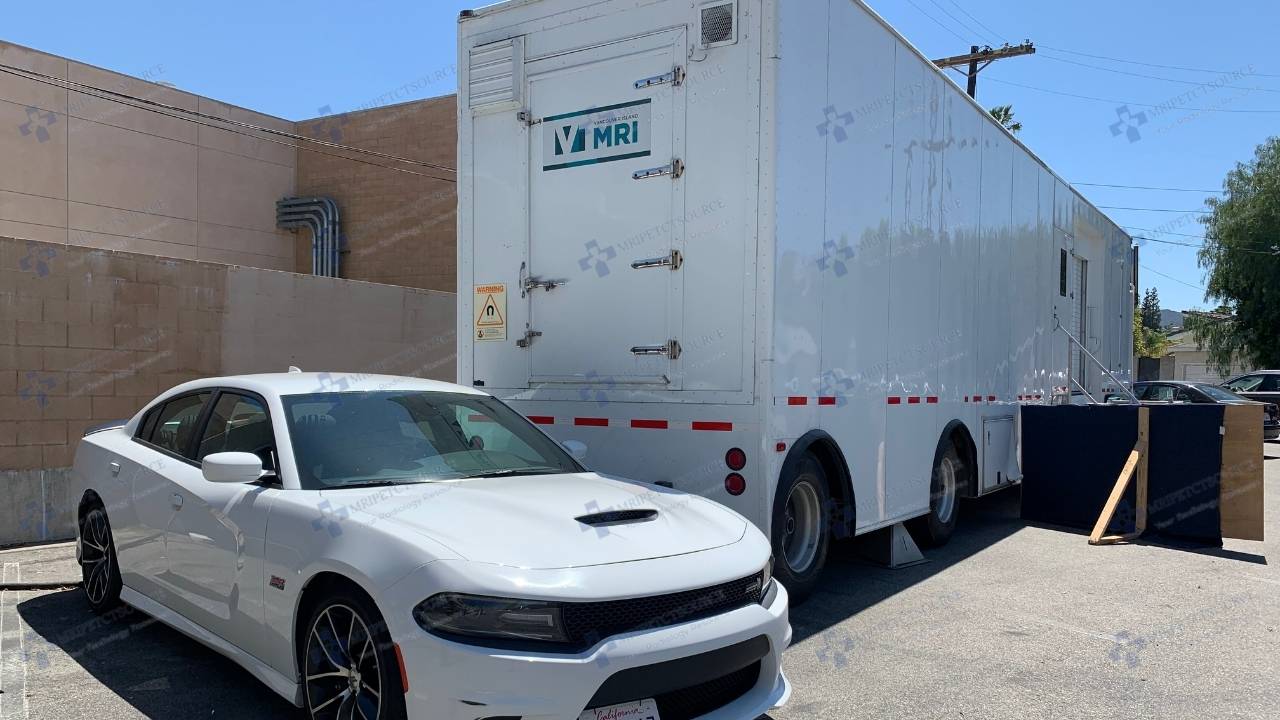

A mobile MRI is a transportable medical imaging system installed on a customized medical imaging trailer that provides advanced imaging capabilities to locations outside of traditional hospital settings. It consists of a specially designed transportable medical imaging trailer housing an MRI machine and accompanying medical devices.
Mobile MRIs help to reach remote or underserved areas, provide on-site diagnostic imaging services, and address patient backlog or increased imaging demands.
Benefits of mobile MRI
Meeting patient imaging needs in your region is paramount, however medical facilities and imaging centers may experience spikes in imaging demand that often lead to a growing backlog and longer patient wait times. A reliable mobile MRI system offers one of the quickest and most cost-effective solutions to meet your evolving diagnostic imaging needs.
Mobile MRI units offer quick deployment, short-term rentals, and long-term lease options, making them an ideal solution for acquiring world-class medical imaging equipment at a fraction of the cost of fixed-site MRI systems.
1. Reduce time for applications training.
Customizable hardware options means your imaging staff will require minimal training to begin scanning operations. We offer magnetic resonance imaging systems with same or similar software so your technologists will already be familiar with the new platform.
2. Excellent imaging alternative during imaging emergencies
Effective solution to alleviate patient backlog or meet heightened imaging demand.
3. Brings Accessible Healthcare For Underserved Communities.
Mobile MRI truck scanner units provide imaging capabilities to areas that lack a permanent MR imaging suite. It ensures that remote or underserved areas have access to high-quality medical imaging services.
4. Convenient experience for patients.
Eliminate the need for patients to travel long distances to a fixed facility for an MRI scan. The mobile units can be stationed at different locations, such as hospitals, clinics, or community centers, making it more convenient for patients to receive necessary diagnostic imaging.
5. Helps provide timely diagnosis for patients
Enable timely diagnosis by reducing wait times for patient scans. By bringing the scanner closer to the patient’s location, it minimizes delays in obtaining crucial medical information, leading to faster treatment decisions.
6. Cost-effective access to advanced imaging
Compared to setting up a fixed-site MRI, mobile units offer a more cost-effective solution. They eliminate the need for significant infrastructure investments and allow healthcare providers to allocate resources efficiently.
7. Worry-free repair solutions
Every imaging system is backed by imaging repair experts to keep your systems scanning reliably. Stay ahead of service issues with 24-hour remote monitoring, on-site repair service and expert technical support.
Disadvantages of a mobile MRI
Mobile MRI offers a great alternative imaging solution, but there are some notable limitations to consider before purchasing or leasing.
1. Limited to 1.5T MRI*
Most mobile MRI units are limited to a 1.5 tesla magnet due to the material strength of the customized medical imaging trailers. The diagnostic imaging industry rarely sees 3T MRI transportable systems, which come with a heightened cost to own and operate.
2. External Power Source Required
All MR systems rely on a stable power supply to operate. Ensuring a consistent and reliable power source at various locations can be a logistical challenge, especially in areas with unreliable electricity infrastructure or during adverse weather conditions. Find detailed information in the power requirements section below.
3. Space limitations
The confined space may lead to some challenges for patients who are claustrophobic or heavier persons.
The limited room can restrict patient comfort and may result in compromised image quality if patients are unable to remain still during the scan. Additionally, space may be limited for ancillary services and medical devices.
4. Increased maintenance and upkeep
Mobile MRI units require regular maintenance and servicing to ensure proper functioning and image quality.

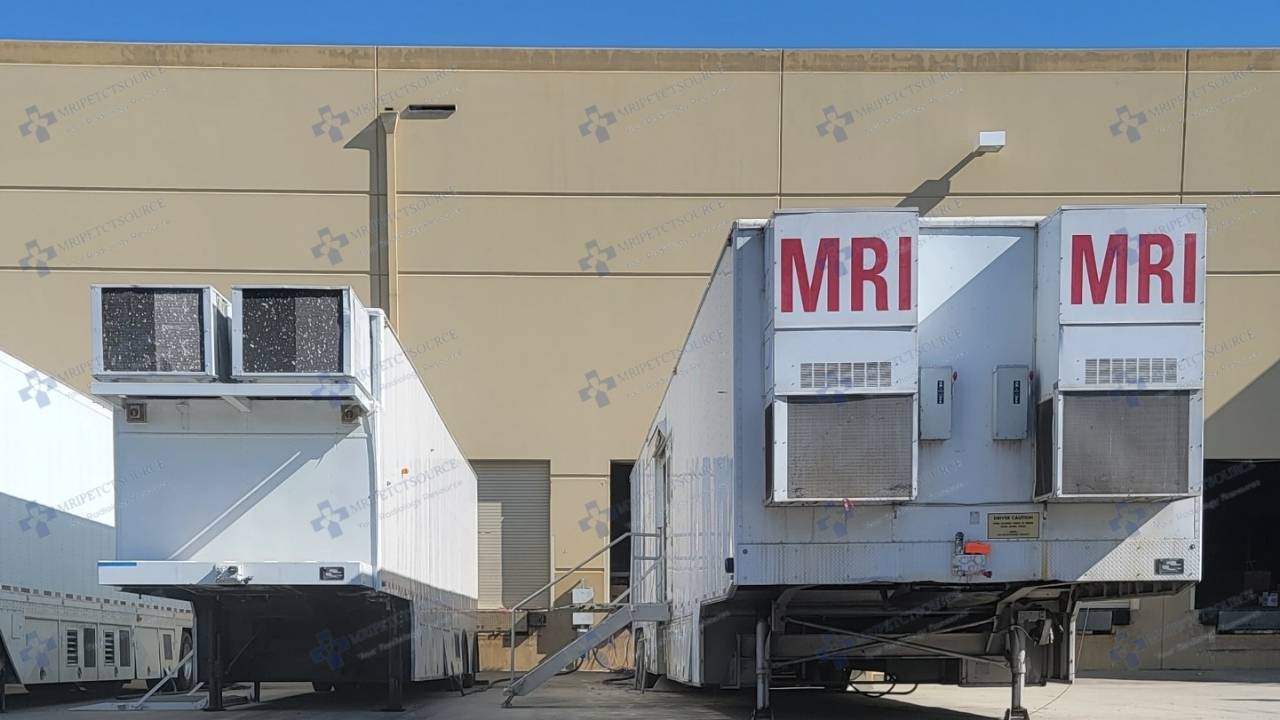

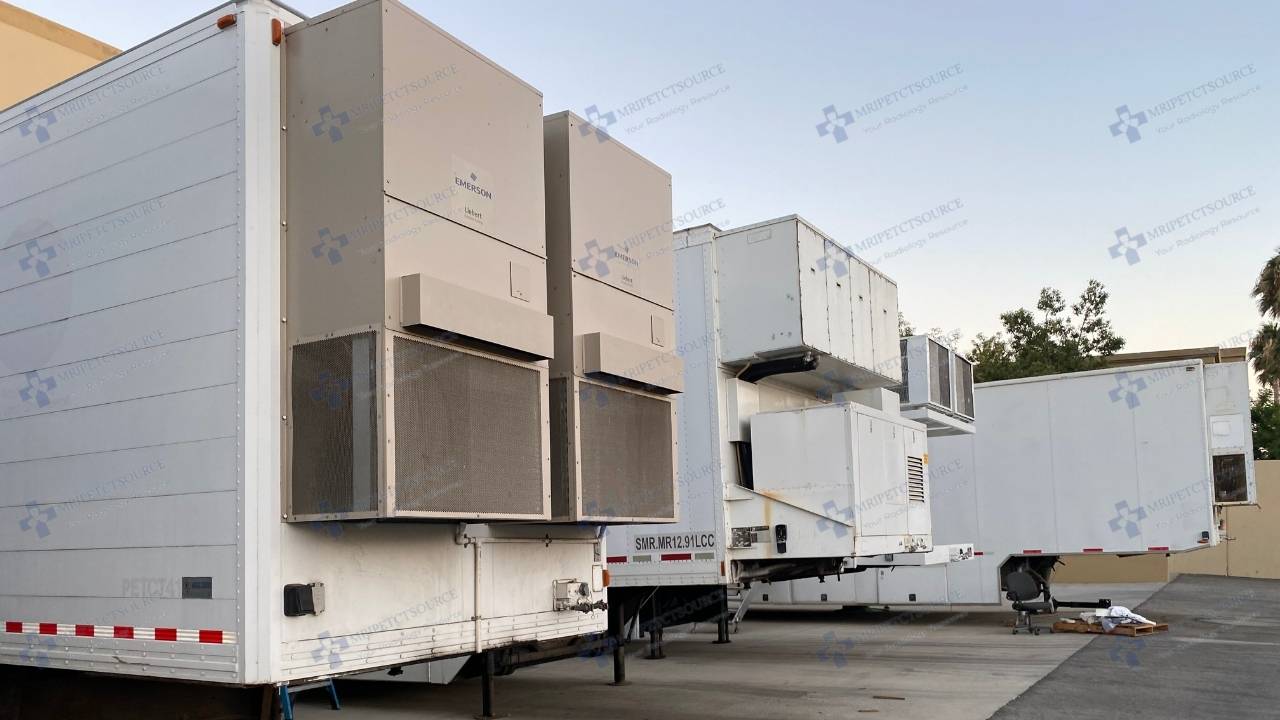

Additional subsystems such as air conditioning units, chillers, generator and medical imaging trailer itself require additional maintenance hours as compared to fixed-site MRI scanners.
Furthermore, access to technical support and spare parts may be more limited compared to fixed facilities.
5. May require patient transport
One disadvantage is the need to transport patients to the medical imaging trailer, which may be challenging, especially for individuals with mobility issues or difficulty walking. This additional step may cause inconvenience and discomfort for patients during the imaging process.
Additionally, patient transport device movement may be limited by doorway thresholds* (Only applicable in compact 8×48 models). Check with your imaging sales representative.
How Does a Mobile MRI Work?
A mobile MRI operates on the same principles as a fixed-site MRI, but with the added advantage of mobility. Both systems use a powerful magnet, radiofrequency pulses, and gradient coils to generate detailed images of the body’s internal structures. A mobile MRI is designed for transportability, allowing users to bring it to different locations as required.
They offer flexibility in terms of accessibility, allowing medical facilities to provide advanced imaging services in underserved areas or during renovations. The primary difference lies in the convenience and versatility offered by a mobile MRI units. They are a valuable solution for expanding imaging capabilities beyond the confines of a fixed-site facility.
Mobile MRI scanners bring advanced imaging capabilities to any location requiring imaging services by utilizing a powerful magnet, emitting radiofrequency pulses, and employing gradient coils to create detailed images of the body’s internal structures. Additional information available at https://www.medicalimagingsource.com/magnetic-resonance-imaging-mri
Are Mobile MRI Scanners Smaller?
Yes, mobile MRI scanners are designed to be smaller and more compact compared to traditional fixed-site systems. Specific size limitations vary depending on the scanner model and mobile MRI trailer manufacturer. The primary focus is on maintaining functionality and imaging quality while optimizing space utilization.
Overall, the compact design of mobile MRI scanners enables them to provide advanced imaging capabilities in a portable and convenient format.
Mobile MRI Size Requirements
This section details mobile MRI size requirements and important considerations when planning mobile MRI site layout. Find information regarding size requirements, power requirements and more below.

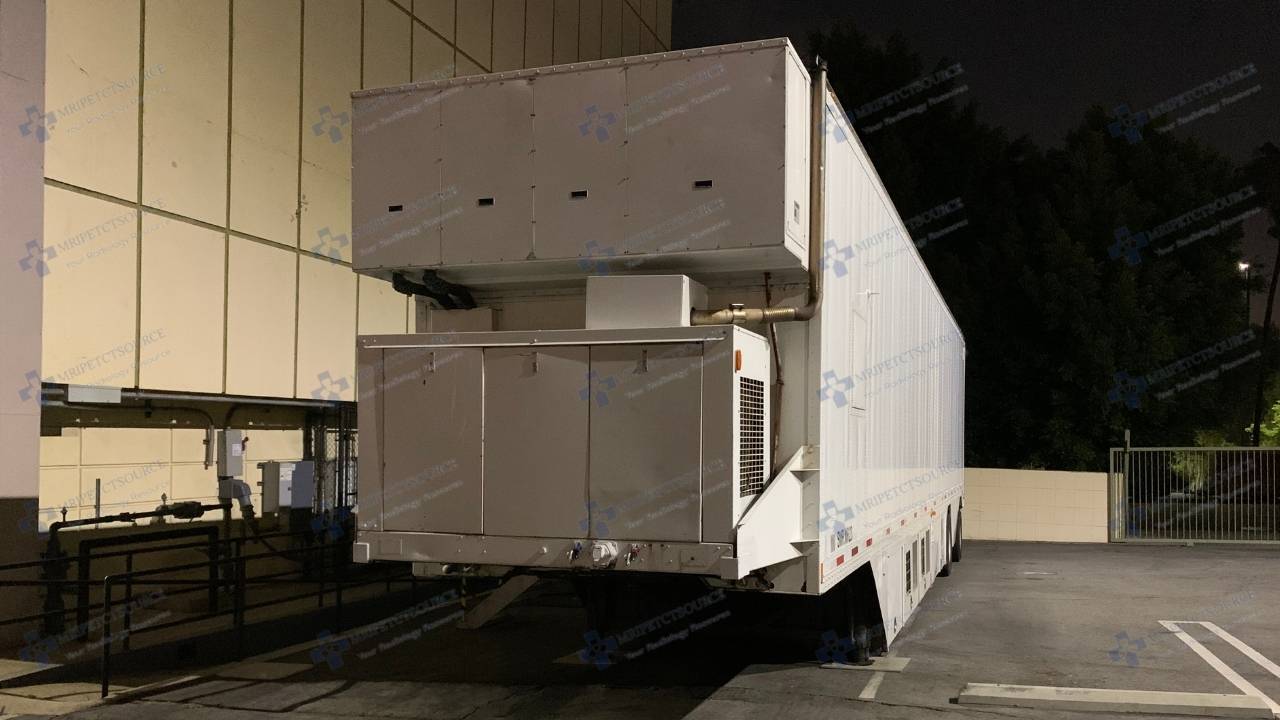

8ft x 48ft Mobile MRI

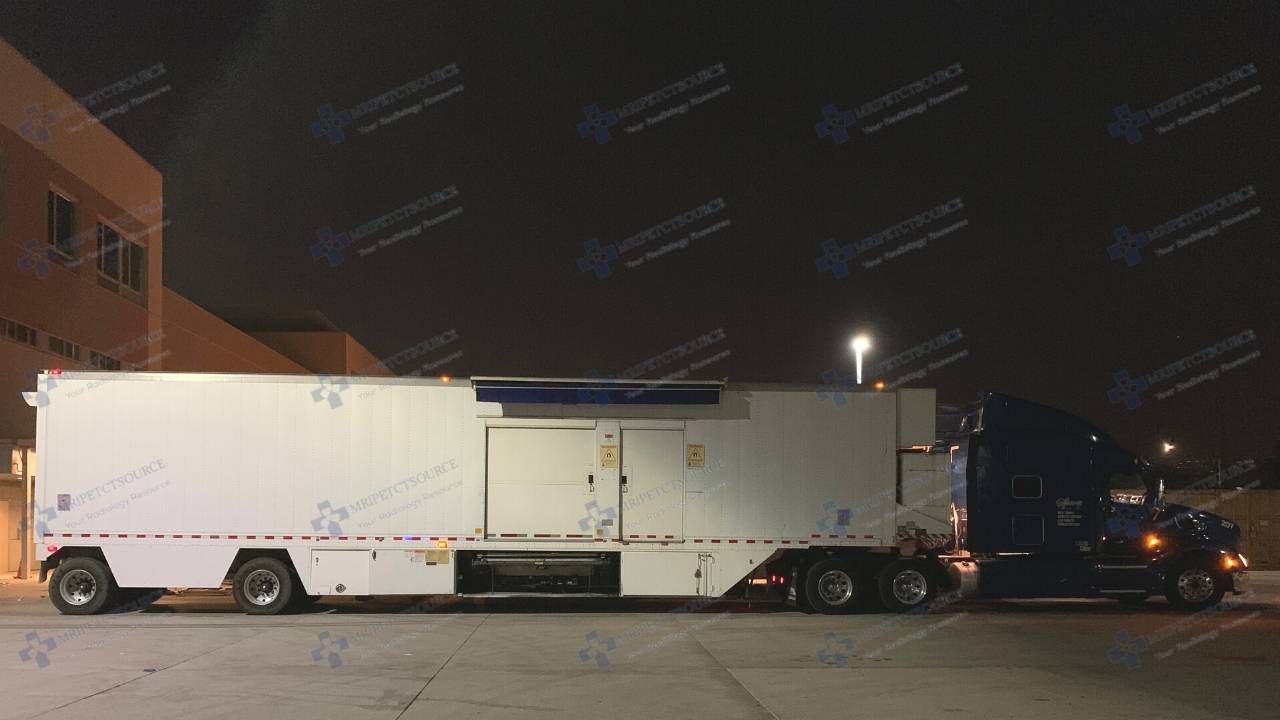

An 8ft x 48ft trailer is a compact option for mobile MRI units, making it ideal for facilities with limited space or for use in remote locations.

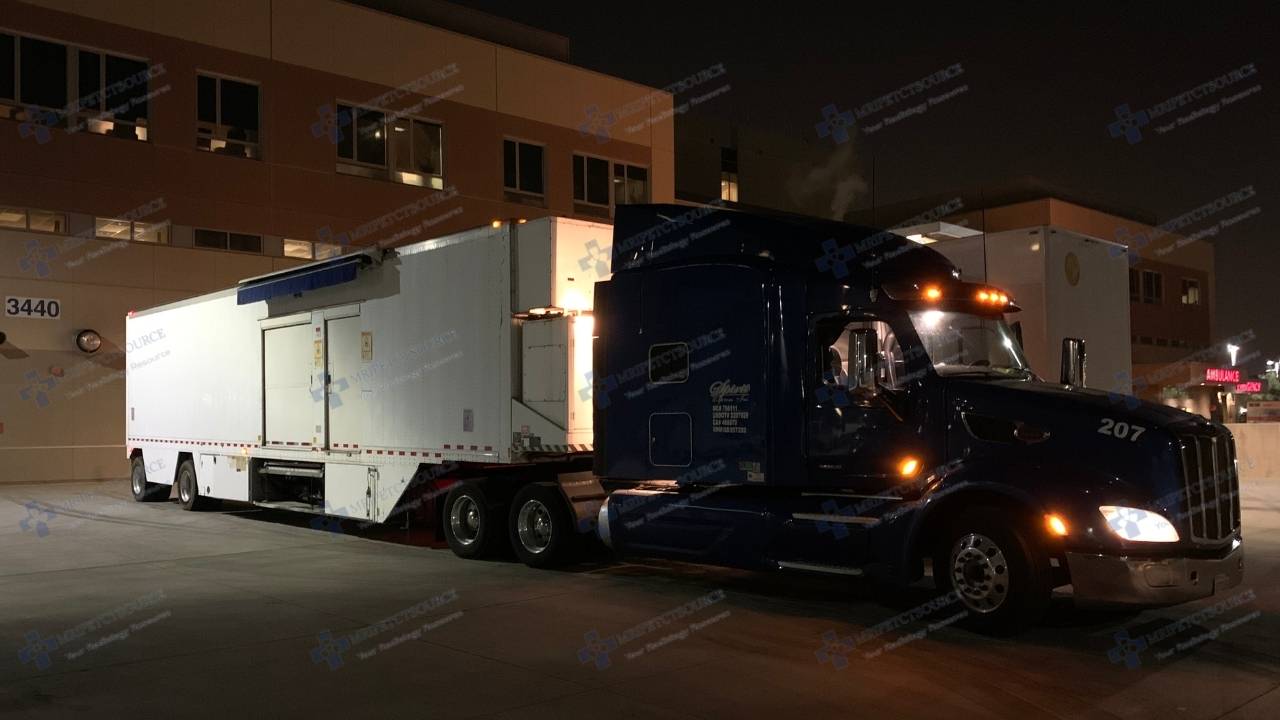

The size of the trailer allows it to be easily transported to different locations and maneuver in tight spaces.
Actual dimensions: 8’-6” W x 48’-3″ L x 13’-6” H

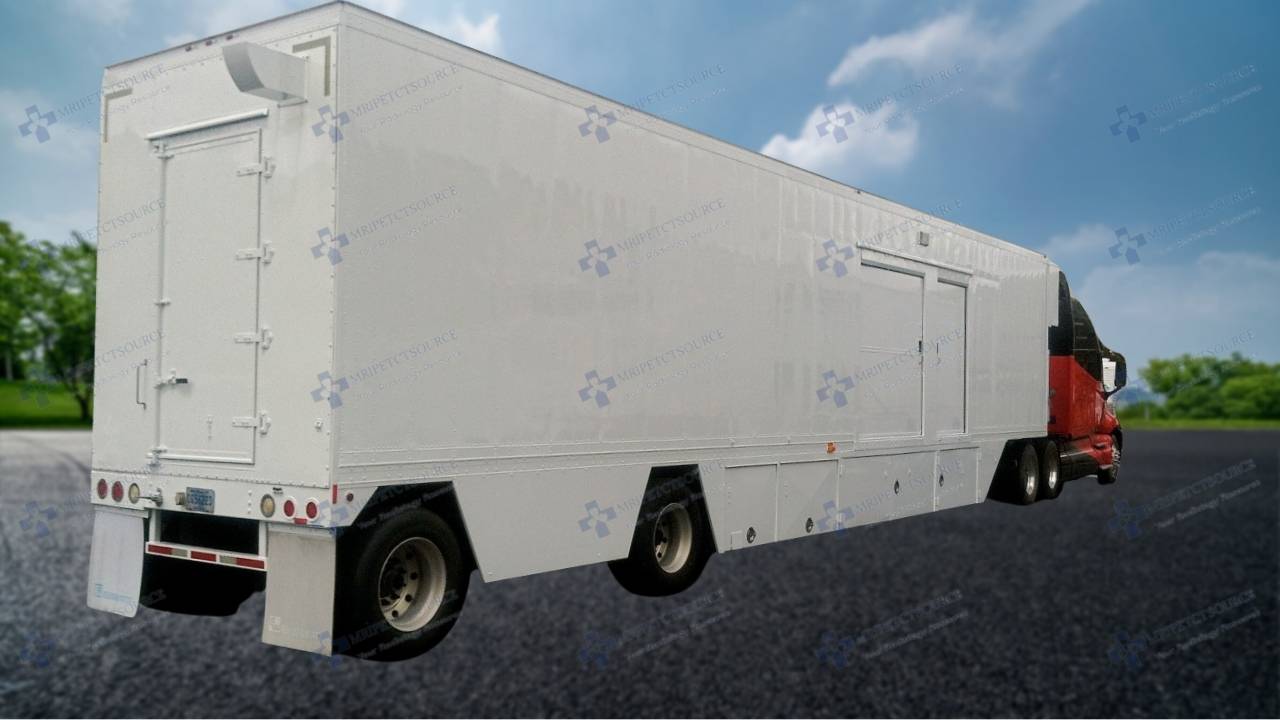

12ft x 60ft Mobile MRI
A 12ft x 60ft trailer is a larger option for mobile MRI units, providing more space for the machine, patient preparation area, and control room.
This size is suitable for facilities that need to perform more complex MRI procedures or that require a larger patient preparation area.
Actual dimensions: 12′-4” W x 60’-5″ L x 13’-6” H
What’s the difference between 8 x 48 and 12 x 60 mobile MRI?

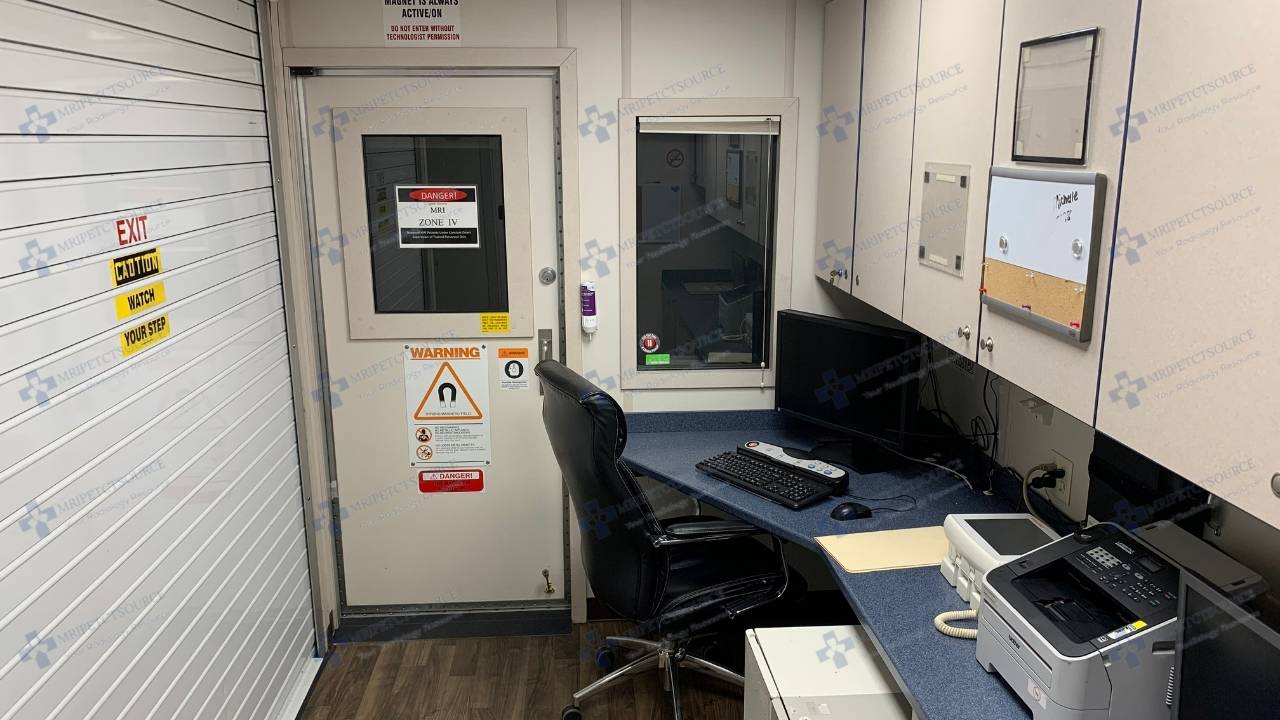

The most most significant difference between the two layouts is the space within scan room, operator room, and patient changing areas.

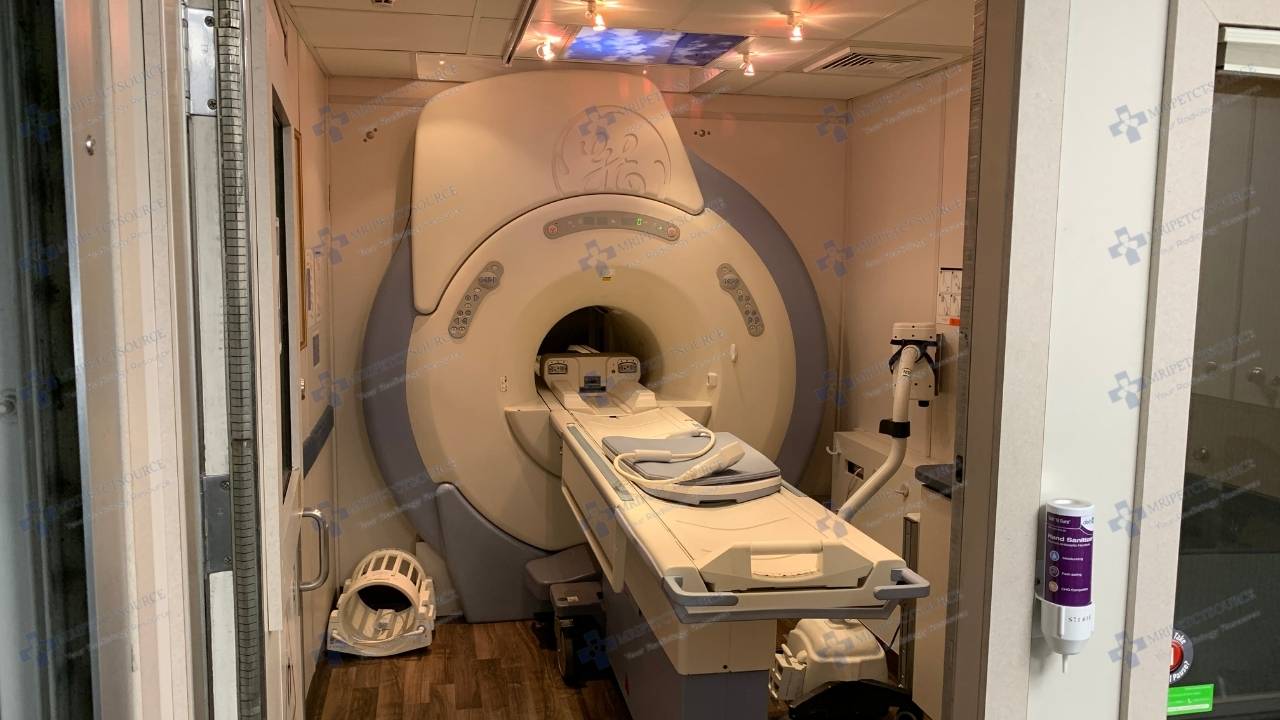

The 12 x 60 mobile MRI scan room offers ample space for coil storage and extra cabinets. Furthermore. the additional space in the MRI operator room offers enough space to comfortably maneuver MRI-safe gurneys within the operator console area.
The patient changing areas is no longer limited to a small corner of the room. Patients can comfortably change in a private patient changing area complete with safe storage.
8ft x 48ft layouts offer the same advanced imaging capabilities in a compact design. While the scan room of the 8 x 48 setup offers ample space for all diagnostic procedures, the scan room is notably missing the extra space for patient preparation.
Patient changing areas are limited to more compact operator room and are not as expansive as compared with a 12 x 60. Separate patient changing area is not available in the 8ft x 48ft layout. Room dividers may be used.

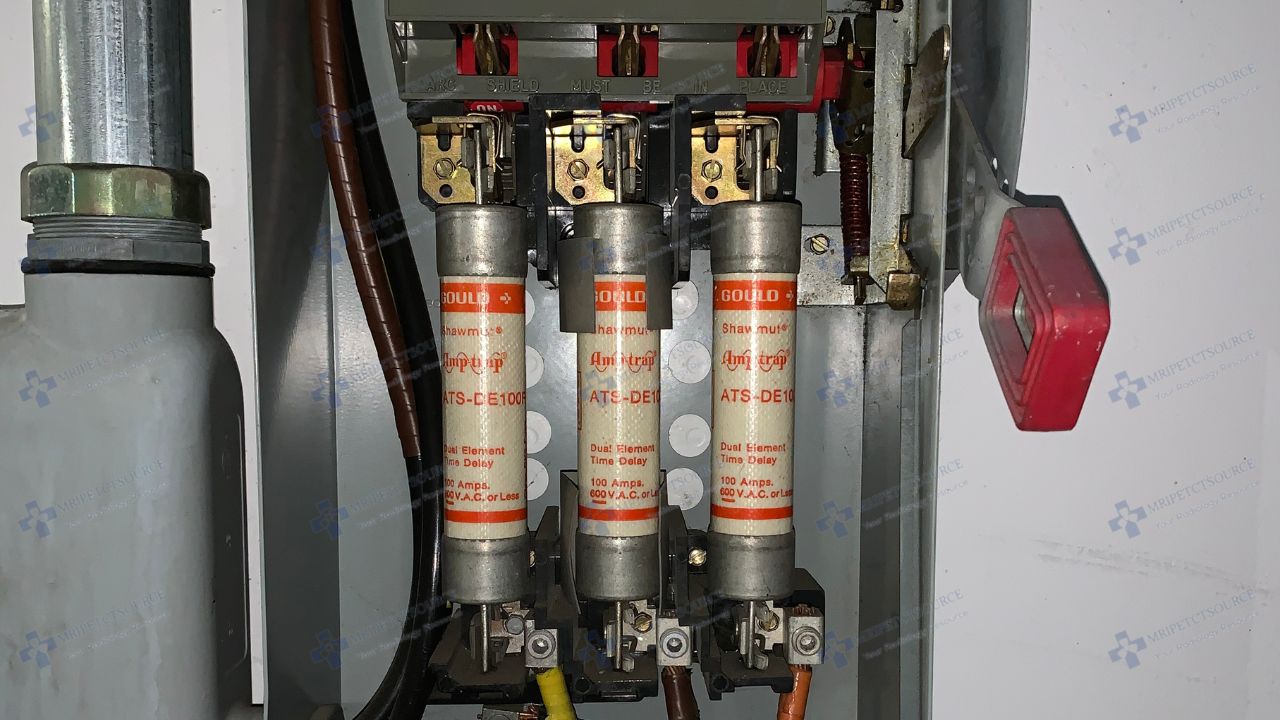

Mobile MRI power requirements
A stable external power source is necessary for system to operate reliably. The truck, along with the imaging system and subcomponent rely on 480V, 60Hz, 3-phase AC power.
The incoming power supply requires a dedicated electrical circuit with a capacity of at least 100 amps, fed by a russellstoll connector high voltage connector.
- Voltage: 440V – 480V
- Frequency: 50Hz – 60 Hz
- Amperage: 100 Amps
- Connector: Russellstoll
- External Power: Generator
Additionally, the unit can be powered by an onboard or external diesel generator, if needed.
Ensuring a solid, steady electrical supply is imperative for all MR systems, as the various subsystems in the trailer are highly sensitive to power fluctuations.
Additional Mobile MRI Considerations
Patient lift access clearance
When planning the site layout for your next mobile MRI unit, keep in mind that the patient lift is located on the passenger side of the trailer.
Ensure ample clearance in the area to accommodate the patient lift, which may protrude up to 8 feet. Additionally, stairs for staff access sit next the patient lift. It is important to allow unimpeded patient access to and from the medical imaging mobile unit.
Solid, stable base required
The weight of the medical imaging trailer can cause warping of asphalt, particularly during the summer months. It is imperative to provide a stable base, as system is sensitive to vibrations.

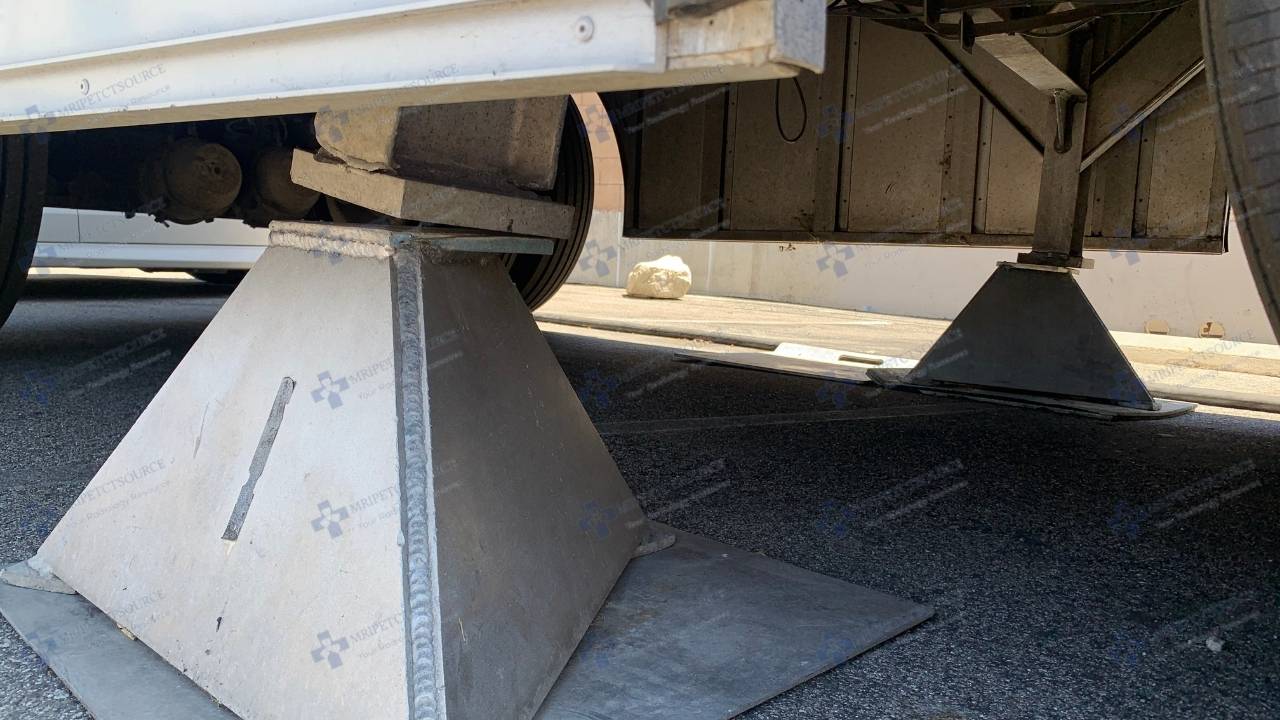

The use of steel plates, dampeners, or wood platform can help to aid in stabilizing trailer. Plan accordingly.
Clearance at rear of trailer
Every medical imaging trailer is outfitted with a large RF-sealed door at the rear that allows access for service personnel. When fully opened, the rear door may protrude as far as 5 feet.
Ensure rear service entrance is unobstructed at all times with proper clearance for removal and repair of system components.
Distance to power supply
Mobile MRI systems rely on external power sources supplied from shore power or generators. When planning site layout, consider the distance to power supply from trailer.
The majority of trailers feature a 45-foot Russellstoll high voltage connector, with optional extended ranges. Ensure the path for the high voltage cable is clear of any obstructions and is free of vibration.
Mobile MRI Trailer Manufacturers
This section lists the most popular mobile MRI trailer manufacturers. Please note that the listing order of the companies provided is not indicative of their quality, preference, or in any way an endorsement. The companies are on the list based on their widespread presence and market saturation.
1. Oshkosh Specialty Vehicles (Formerly AK)
Website information: https://www.oshkoshsv.com/product_type/trailers/
Headquarters address: 6901 Reading Road, Cincinnati, OH 45237, United States
AK Specialty Vehicles is known for their high-quality mobile MRI trailers that are designed with durability and customization in mind. They offer a wide range of customization options, allowing customers to tailor the interior layout, features, and technology to their specific needs. They are known for their attention to detail, craftsmanship, and commitment to customer satisfaction.
2. Ellis & Watts Global Industries
Website information: https://www.elliswatts.com/medical-imaging/
Headquarters address: 6723 N. Teutonia Avenue, Milwaukee, WI 53209, United States
Ellis & Watts Global Industries is a renowned manufacturer of medical imaging trailers known for their innovative designs and engineering expertise. Their trailers are built using advanced materials and construction techniques, providing superior structural integrity and reducing noise and vibration during operation. Ellis & Watts’ trailers feature ergonomic layouts, optimized workflow, and advanced shielding to ensure patient comfort and safety. They also offer exceptional customer service and support throughout the entire process, from design to delivery and beyond.
3. Calumet Coach Company
Headquarters address: 2132 Calumet Drive, Channahon, IL 60410, United States
Calumet Coach Company was recently acquired by Oshkosh Specialty Vehicles. They specialize in manufacturing high-quality medical imaging trailers that combine functionality, efficiency, and aesthetics. Their trailers are known for their sleek and modern designs, with a focus on maximizing space utilization and creating a comfortable environment for patients and medical staff. Calumet Coach Company emphasizes the use of cutting-edge technology, offering state-of-the-art features such as advanced HVAC systems, noise reduction mechanisms, and efficient power management. Additionally, they have a strong reputation for delivering reliable and aesthetically pleasing trailers while providing excellent customer support and service.
How Much Does a Mobile MRI Scanner Cost?
Prices for imaging systems are at all time highs due to heightened demand and limited supply. That being said, pricing depends on the layout, model and imaging capabilities of your system.
In that case you may be looking at a price range of $600,000 to $3 million dollars depending on manufacturer and model.
There is definitely a more cost effective alternative if you know which companies to partner with.
Independent service organizations (ISOs) and refurbishment companies offer imaging centers the option to buy or lease equipment at a fraction of the cost compared to new systems.
Leasing companies offer mobile MRIs at a cost of around $30k-$35k per month (as low as $20k/mo), including a service contract. Learn more below.
Mobile MRI Leases and Rentals
Are you in the market for a mobile MRI sale or a mobile MRI lease solution? Our imaging experts are ready to provide solutions for all of your imaging needs.
Get Your Quote Today!
Our imaging experts take the stress out of the lease and sales process. Simply provide your contact information to have our team contact you.
BY SUBMITTING YOUR INFORMATION, YOU’RE GIVING US PERMISSION TO CONTACT YOU BY EMAIL OR PHONE. YOU MAY UNSUBSCRIBE AT ANY TIME.
Mobile MRI Scanner for Sale
Still deciding which MRI scanner model is right for your imaging center?
- Click here to see our GE MRI scanner models guide.
- Also, see our MRI scanner pricing guide to receive an accurate comparison and cost breakdown for your next purchase.
Conclusion
It’s important to carefully consider the power and size requirements of a mobile MRI unit before making a decision. The 8ft x 48ft trailer is ideal for facilities with limited space or for use in remote locations, while the 12ft x 60ft trailer is suitable for facilities that need to perform more complex MRI procedures or that require a larger patient preparation area.
Finally, it is important to consult with a knowledgeable imaging agent to ensure that your facility meets the right size and power requirements for your imaging needs.
